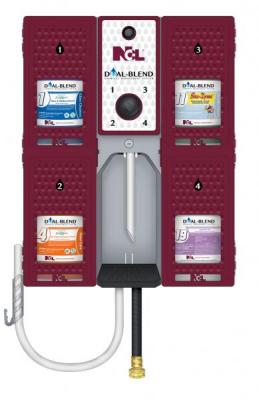

DUAL-BLEND® WALL

DISPENSING UNIT

• Description
• Directions
• Features & Benefits
• Specifications
• Documentation
• Video

• Description

  NCL DUAL-BLEND® Chemical Management System is easy to use and provides a consistent, accurate dilution each and every time.

  Dilution Control. .. Your Way.

  Code: 4113
  Packaging: Individual

• Specifications

  • Weight: Dispenser Only17 lbs
  • Width20 inches
  • Height25 inches
  • Depth6.56 inches

• Disinfectant Efficacy

• Documentation

  Technical Data Sheet DUAL-BLEND Wall Mounted Unit.pdf Product Flyers, Brochures, and Equipment Manuals Dual-Blend Installation Manual.pdf Product Flyers, Brochures, and Equipment Manuals DUAL-BLEND Brochure.pdf

• Directions

  Chemical Selector Dial
  1. Turn the chemical selector dial to the desired chemical position, indicated by the directional arrow
  2. Dispense chemical by either activating the bottle fill lever or bucket fill button
  3. For rinse water, point the dial straight down at the water symbol- This is not potable water, do not drink

  Dispenser Activation Points – Bottle Fill
  1. Slide the bottle tube inside the spray bottle and raise the bottle to engage the u-shaped lever of the bottle fill assembly
  2. To stop filling, lower the bottle and the lever will disengage
  3. Be careful when removing the spray bottle so as to not splash residual chemical

  Dispenser Activation Points – Push Button Bucket Fill
  1. To start the flow of diluted chemical, press button on unit above selector dial
  2. For continuous flow, twist button clockwise
  3. To disengage, release button or twist button counterclockwise



• Features & Benefits

  • Completely closed dispensing system / Reduces contact with concentrated chemical
  • Minimum setup required / Quick and easy to use.
  • Sturdy, durable plastic construction / Holds up for long term use
  • Versatile / Dispenses to both bottles and buckets from all four products
  • Bottle activated fill assembly / One-handed quart bottle filling
  • Accurate dilutions control costs / Save money and products perform better
  • Lockable cabinet. / Keeps product concentrates safe
  • ASSE Approved back flow device / Prevents contamination of water source
  • Simple installation. Minimum setup required / No tips to insert, no tubes to install. Comes ready to use, simply mount on wall, connect to water source, insert products and begin diluting products
